概述

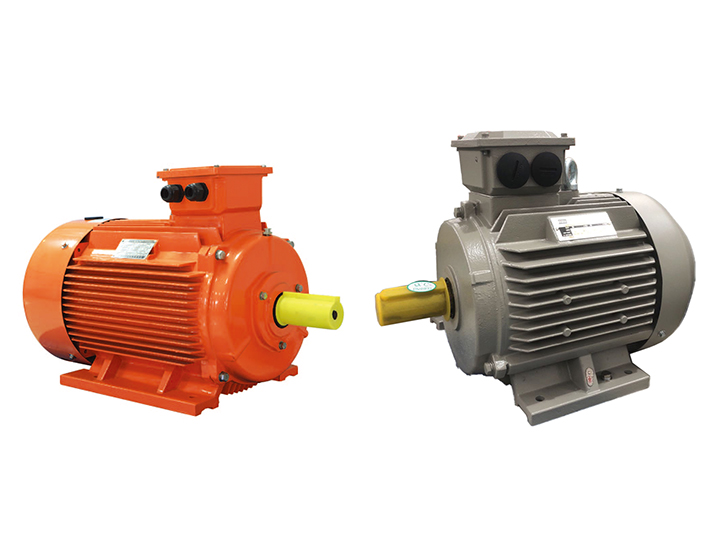

YE3系列高效率三相異步電動機是采用新材料、新工藝和優化設計而制造的全封閉、自扇冷鼠籠三相異步電動機。是新一代節能電機。
YE3系列電動機中心高從H80~355，功率從.75KW~315KW，級數為2、4、6。

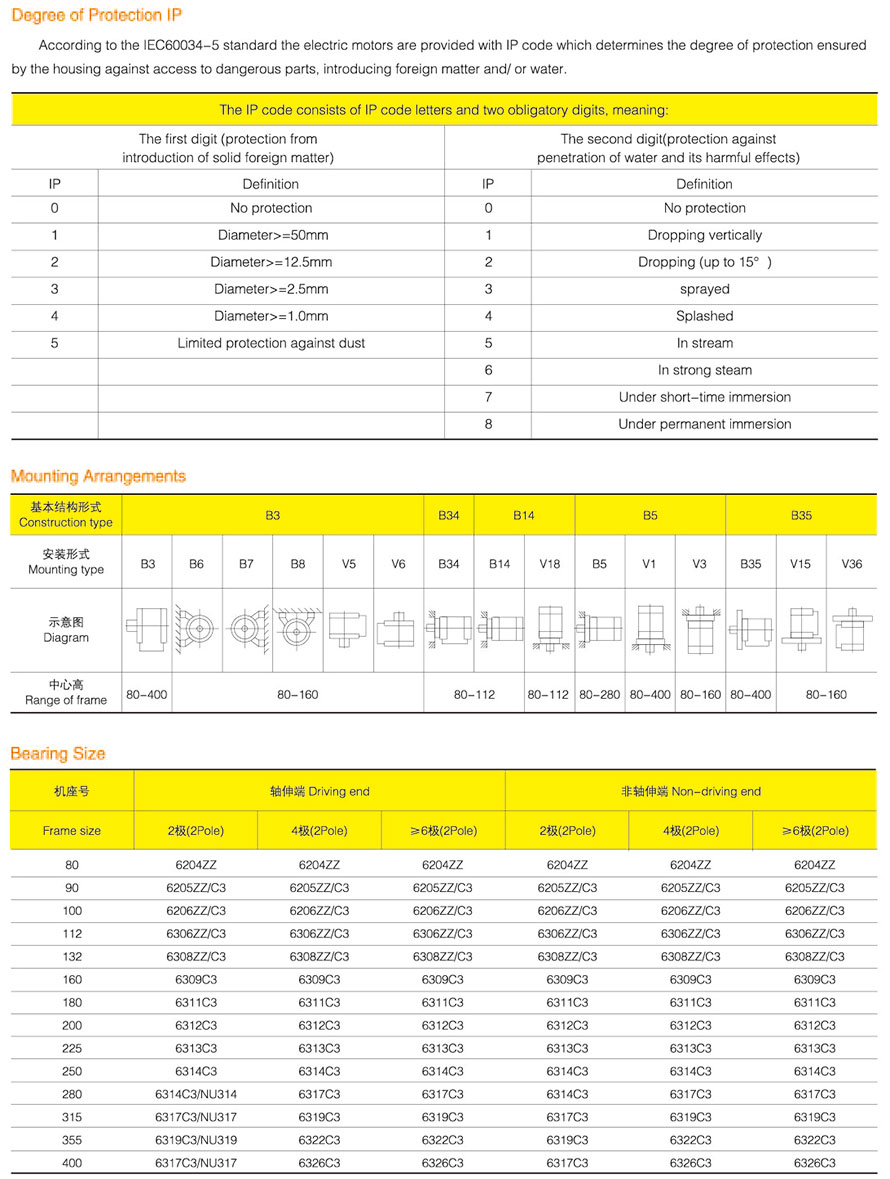

YE3系列電動機防護等級為IP55，冷卻方式為IC411，安裝尺寸符合ICE標準。額定電壓為400V，額定頻率為50HZ。工作環境溫度不超過40℃，海拔不超過1000米。工作方式：連續（S1）。
YE3系列節能型三相異步電動機具有辦事效率高，起動轉矩打，噪音低，結構合理。冷卻散熱條件成熟，本系列電動機為一般用途的三相異步電動，可用于驅動各種通用機械設備，如壓縮機、風水、水泵等機械設備，也可在石油、化工、醫藥、礦山及其它（如環境使用條件特殊）。
Introduction
YE3 series high efficiency three-phase asynchronous motor is a fully enclosed, self-fan cooled squirrel cage three-phase asynchronous motor manufactured by new materials, new technology and optimized design. Is a new generation of energy-saving motors.

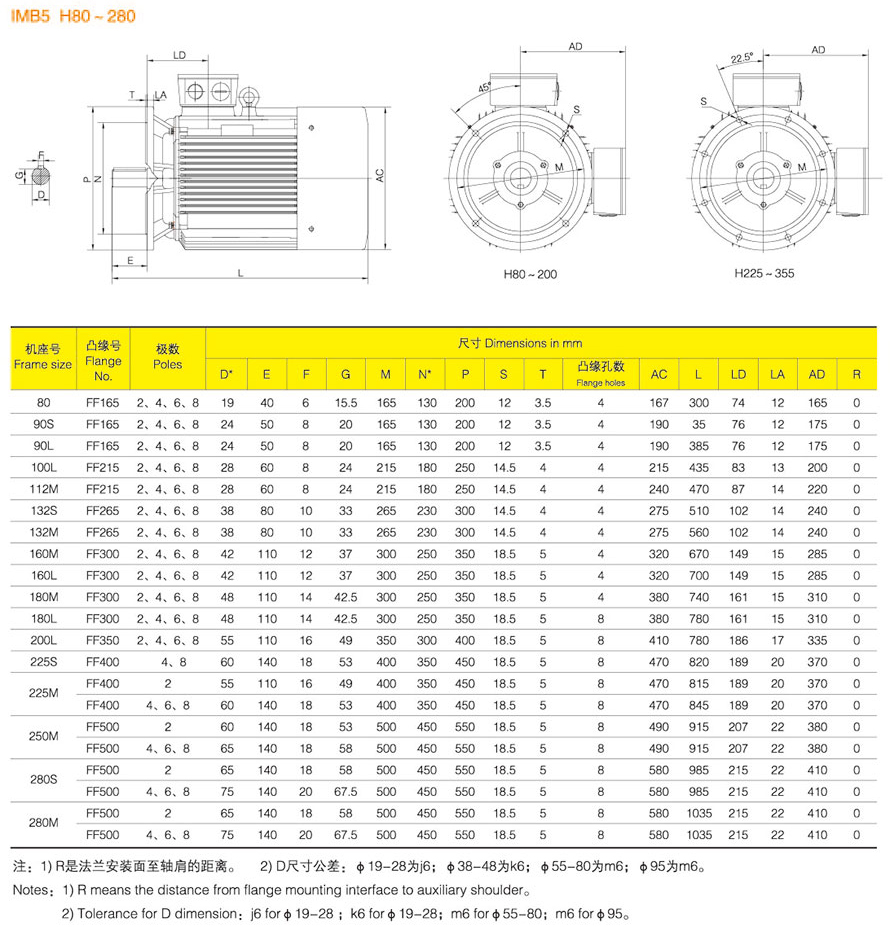

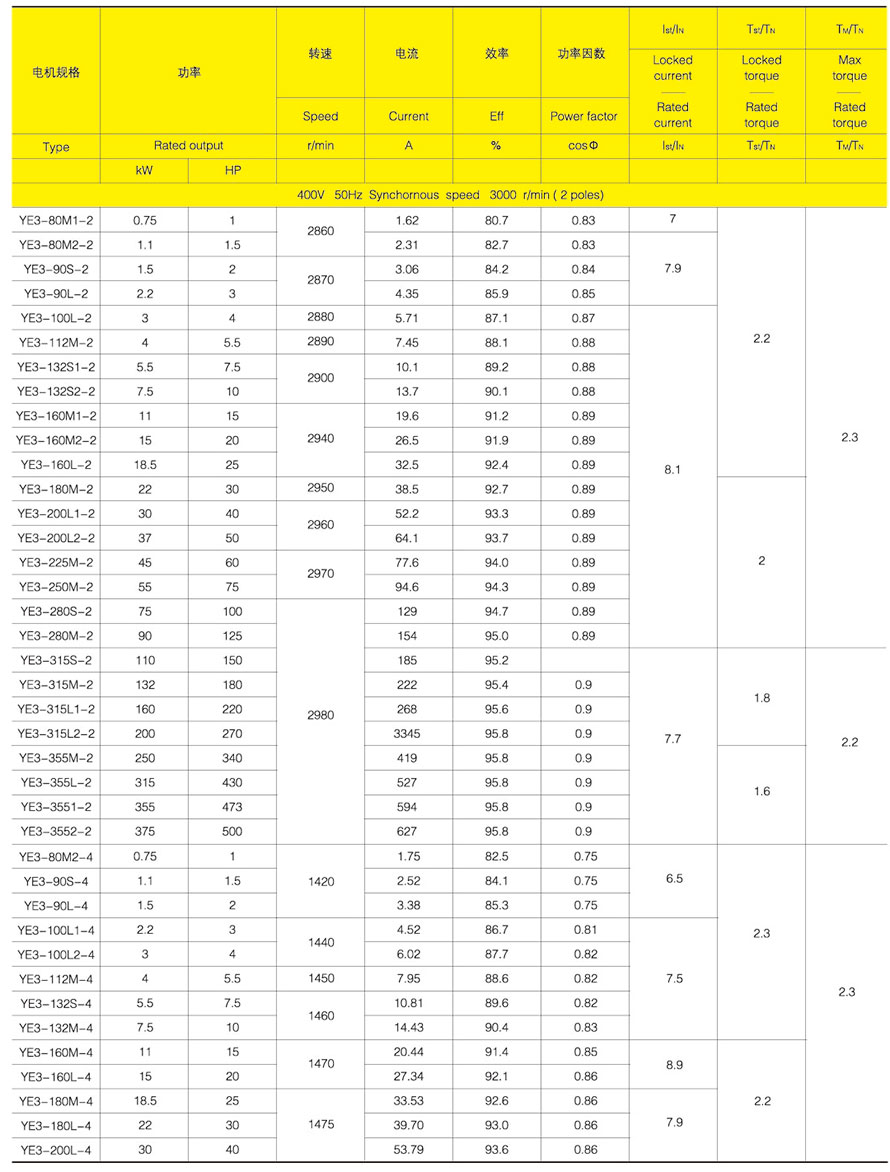

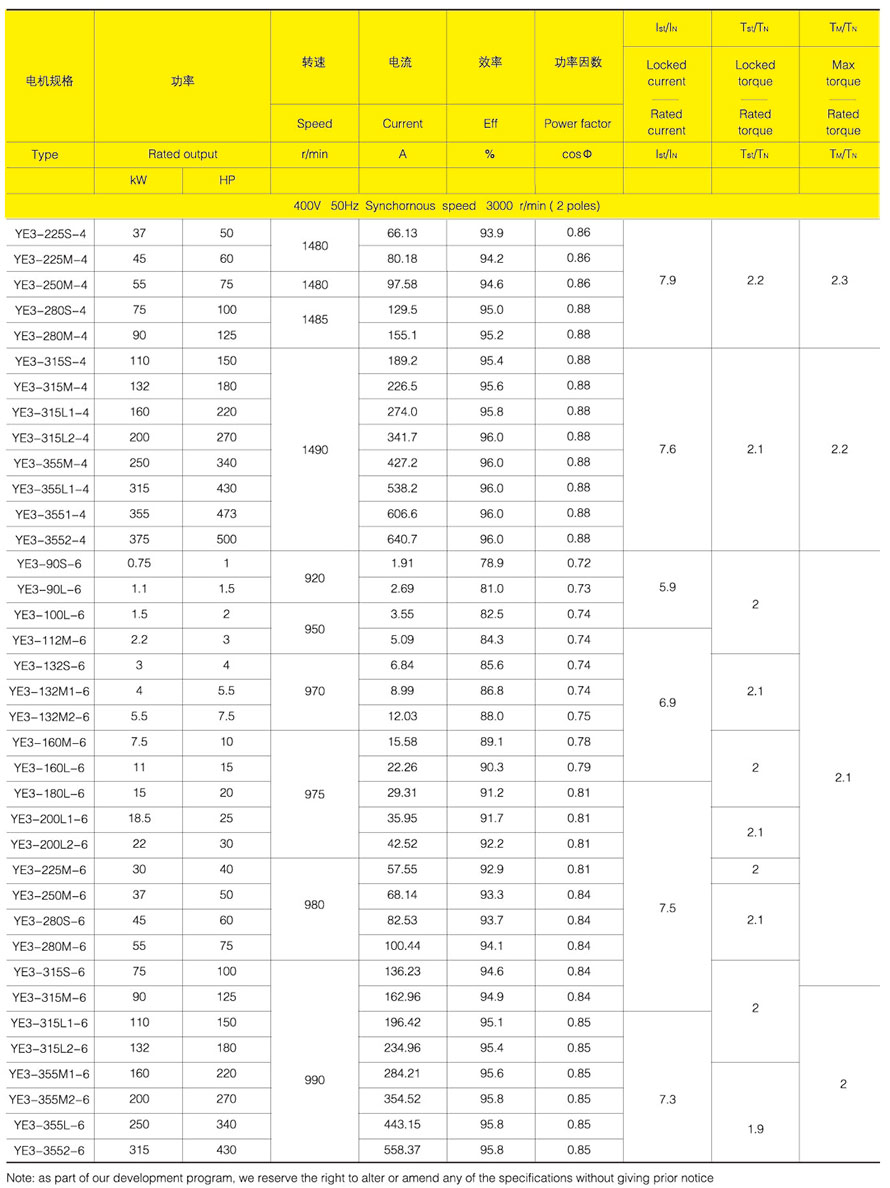

YE3 series motor center height from H80 ~ 355, power from .75KW ~ 315KW, the number of stages is 2, 4, 6.
YE3 series motor protection grade is IP55, cooling method is IC411, installation size is in line with ICE standard. The rated voltage is 400V and the rated frequency is 50HZ. The working environment temperature does not exceed 40 ° C, and the altitude does not exceed 1000 meters. Working mode: continuous (S1).
YE3 series energy-saving three-phase asynchronous motor has high efficiency, low starting torque, low noise and reasonable structure. The cooling and cooling conditions are mature. This series of motors is a general-purpose three-phase asynchronous electric motor. It can be used to drive various general mechanical equipment such as compressors, Feng Shui, pumps and other mechanical equipment. It can also be used in petroleum, chemical, pharmaceutical, mining and other ( If the environment is used in special conditions).
