YE2系列高效三相異步電動機

產品技術特性產品的電氣性能數據產品的機械尺寸數據

產品特性
全封閉自扇冷卻式三相異步電動機，設計要求符合IEC、GB等相關標準要求；
外殼材料為灰鑄鐵，接線盒可選配鋼板接線盒；
電動機效率達到GB18613-2012標準能效等級三級及IEC60034-30標準的IE2效率等級要求；
H80-H132電機，驅動端標配采用骨架油封進行密封并可選配采用油封進行密封，H160以上電機驅動端采用油封進行密封作為標配；
特定繞組設計可支持多種電壓（50HZ或60HZ）；
可承受1.5倍額定電流達2分鐘（IEC60034-1）；
可選配防潮加熱帶（空間加熱器）；
可選配PTC或PT100等熱敏元件進行繞組或軸承熱保護。

Product Features
Fully enclosed self-fan cooling three-phase asynchronous motor, the design requirements meet the relevant standards of IEC, GB, etc.;
The outer casing material is gray cast iron, and the junction box can be equipped with a steel junction box;
Motor efficiency meets GB18613-2012 standard energy efficiency rating 3 and IEC60034-30 standard IE2 efficiency rating requirements;
H80-H132 motor, the drive end is equipped with a skeleton oil seal for sealing and optionally with an oil seal for sealing. The motor drive end of H160 or above is sealed with an oil seal as a standard;
The specific winding design can support a variety of voltages (50HZ or 60HZ);
can withstand 1.5 times rated current for 2 minutes (IEC60034-1);
Optional with moisture-proof heating belt (space heater);
Optional PTC or PT100 thermal elements for winding or bearing thermal protection.

產品優勢
效率提高
通過新型的繞組設計，并采用損耗低的硅鋼材料，減少電機的損耗，提高電機效率，節約用電為客戶提高經濟效益并有利于減少能源消費，保護環境；
可靠的質量和優良的電機性能
為確保良好的絕緣性能，增加電機的使用壽命，標準電機采用F級絕緣系統并按B級考核（80k）；
電壓、效率
標準電機的供電電壓和頻率符合IEC60034-1標準中規定的A類電壓和頻率誤差要求，充許電壓偏差為±5%，頻率偏差±2%；
額定輸出
額定輸出是指符合IEC60034-1標準的要求，冷卻介質溫度（CT）為40℃，設備安裝地點的海拔高度在1000m以下的情況，連續工作可以充許的輸出。根據IEC60034-1標準的要求，該系列電動機在額定電壓和頻率下能承受1.5倍額定電流持續2分鐘。

Product Advantage
Efficiency improvements
Through the new winding design, and the use of low-loss silicon steel materials, reduce motor losses, improve motor efficiency, save electricity for customers to improve economic efficiency and help reduce energy consumption, protect the environment; Br /> Reliable quality and excellent motor performance
To ensure good insulation performance, increase the service life of the motor, the standard motor uses Class F insulation system and is assessed according to Class B (80k);
Voltage, efficiency
The standard motor supply voltage and frequency meet the Class A voltage and frequency error requirements specified in the IEC60034-1 standard, the allowable voltage deviation is ± 5%, frequency deviation ± 2%;
Rated output
Rated output refers to the requirements of IEC60034-1 standard, the cooling medium temperature (CT) is 40 °C, the altitude of the equipment installation location is below 1000m, continuous output can be allowed to output. According to the requirements of IEC60034-1, this series of motors can withstand 1.5 times the rated current for 2 minutes at rated voltage and frequency.

應用領域
可用于驅動各種通用機械如機床、空壓機、水泵、風機、減速機、傳輸帶、礦山機械、冶金設備等。不含易燃，易爆或腐蝕性氣體場合。

Product application area
Can be used to drive a variety of general machinery such as machine tools, air compressors, pumps, fans, reducers, conveyor belts, mining machinery, metallurgical equipment. Contains no flammable, explosive or corrosive gases.

產品技術標準

名稱Title	IEC標準 IEC standard	中國國家標準 Chinese standard
旋轉電動機定額和性能 Rotating electrical machines-Part I:Rating and performance	IEC 60034-1	GB 755
旋轉電動機損耗與效率確定的標準測試方法 losses and efficiency from tests（excluding machines for traction vehicles）	IEC 60034-2	GB/T 1032
旋轉電機整體結構的防護等級（IP代碼）分級 Rotating electrical machines-Part 5:Deg rees of protection provided by theintegral design of rotating electrical machines（IP code） -Classification	IEC 60034-5	GB/T 4942.1
旋轉電動機冷卻方法 Rotating electrical machines-Part6: Methods of cooling（ IC Code）	IEC 60034-6	GB/T 1993
旋轉電動機結構犁式、安裝型式及接線盒位置的分類（IM代碼） Rotating electrical machines-Part7: Classification of types of construction, mounting arrangements and terminal box position（ IM Code）	IEC 60034-7	GB/T 997
旋轉電動機旋轉電機線端標志與旋轉方向 Rotating electrical machines-Part8: Terminal markings and direction of rotation	IEC 60034-8	GB/T 1971
旋轉電機噪聲測定方法及限值第9部分：噪聲限值 Rotating electrical machines-Part9: Noise limits	IEC 60034-9	GB 10069.3
軸中心高為56mm及以上電機的機械振動振動的測量、評定及限值 Rotating electrical machines-Part14: Mechanical vibration of certain machines with shaft heights 56 mm and higher- Measurement, evaluation and limits of vibration severity	IEC 60034-14	GB 10068
旋轉電機尺寸和輸出功率等級第1部分：機座號56-400和凸緣號55-1080 Rotating electrical machines-Partl: Frame numbers 56 t0 400 and flange numbers 55 to 1080	IEC 60072-1	GB/T 4772.1
中小型旋轉電機安全耍求 Safety requirments of samll and medium size rotating electrical machines		GB 144711
旋轉電動機溫升 Electrical insulation-Thermal classification	IEC 60085	GB/T 11021
電工電子產品自然環境條件溫度和濕度 Classification of environmental conditions Part 2-1: Environmental conditions appearing in natu re-Temperature and humidity	IEC 60072-2-1	GB/T 4797.1
標準電壓 Standard voltages	IEC 60038	GB/T 156

產品使用環境

環境
適臺IP55防護等級的安裝
低于或等于海拔1000米
環境溫度在-15℃-40℃
相對濕度

Operating Environment
Suitable for IP55 installations
Aititude not exceeding 1000m
Ambient temperature -15℃ - 40℃
Relative humidity

溫度 Temperature	相對濕度 Relative Humidity
-15℃ ≤ T ≤ 20℃	100%
20℃ ≤ T ≤ 30℃	95%
30℃ ≤ T ≤ 40℃	55%

如果環境溫度和海拔高度不同，電機功率要考慮以下系數作選型

	<30℃	30℃~40℃	45℃	50℃	55℃	60℃
1000m	1.07	1.00	0.96	0.92	0.87	0.82
1500m	1.04	0.97	0.93	0.89	0.84	0.79
2000m	1.00	0.94	0.90	0.86	0.82	0.77
2500m	0.96	0.90	0.86	0.83	0.78	0.74
3000m	0.92	0.86	0.82	0.79	0.75	0.70
3500m	0.88	0.82	0.79	0.75	0.71	0.67
4000m	0.82	0.77	0.74	0.71	0.67	0.63

型號	功率 (kW)	轉速(RPM)	電壓 (V)	電流 (A)	起動電流倍數 (%)	起動轉矩 (%)	最大轉矩 (%)	效率 (%)	功率因數	轉動慣量 (kg.m-2)	重量
YE2-80K2	0.75	2845	230	2.9	700	220	230	77.4	0.83	0.0011	17
YE2-80G2	1.1	2845	230	4.2	740	220	230	79.6	0.83	0.0013	18
YE2-80G4	0.75	1415	230	3.4	650	230	230	79.6	0.7	0.0017	19
YE2-90S2	1.5	2875	230	5.6	700	220	230	81.3	0.83	0.0019	23
YE2-90L2	2.2	2865	230	8.0	700	220	230	83.2	0.83	0.0022	26
YE2-90S4	1.1	1410	230	4.8	650	230	230	81.4	0.7	0.0021	23
YE2-90L4	1.5	1420	230	6.3	710	250	280	82.8	0.72	0.0027	29
YE2-90S6	0.75	925	230	3.4	550	200	230	75.9	0.72	0.0032	24
YE2-90L6	1.1	920	230	4.8	550	200	230	78.1	0.73	0.0041	26
YE2-100L2	3	2860	400	5.9	750	220	250	84.6	0.87	0.0043	34
YE2-100L4	2.2	1420	230	8.2	710	250	280	84.3	0.8	0.0054	35
YE2-100LX4	3	1440	400	6.5	780	250	280	85.5	0.78	0.0067	39
YE2-100L6	1.5	930	230	6.5	550	200	220	79.8	0.73	0.0085	34
YE2-112M2	4	2880	400	7.6	750	220	250	85.8	0.88	0.0065	41
YE2-112M4	4	1445	400	8.5	750	250	280	86.6	0.78	0.0086	46
YE2-112M6	2.2	945	230	8.9	650	210	220	81.8	0.76	0.0133	40
YE2-132S2	5.5	2925	400	10.4	750	220	250	87	0.88	0.0146	63
YE2-132SX2	7.5	2930	400	15.8	750	220	250	88.1	0.88	0.0157	68
YE2-132S4	5.5	1460	400	11.9	720	250	280	87.7	0.8	0.0205	68
YE2-132M4	7.5	1450	400	15.3	720	250	280	88.7	0.8	0.0296	80
YE2-132S6	3	965	400	6.8	650	210	250	83.3	0.76	0.0372	60
YE2-132M6	4	965	400	9.0	650	210	250	84.6	0.76	0.0489	77
YE2-132MX6	5.5	965	400	12.0	650	200	250	86	0.77	0.0585	81
YE2-160M2	11	2935	400	20.0	750	220	250	89.4	0.89	0.0549	113
YE2-160MX2	15	2935	400	26.9	750	220	250	90.3	0.89	0.0635	123
YE2-160L2	18.5	2935	400	32.6	750	220	250	90.9	0.9	0.0725	141
YE2-160M4	11	1455	400	21.3	760	210	280	89.8	0.83	0.0724	125
YE2-160L4	15	1465	400	28.1	690	210	280	90.6	0.85	0.0929	146
YE2-160M6	7.5	970	400	16.8	650	200	230	87.2	0.74	0.1212	114
YE2-160L6	11	970	400	23.6	640	200	230	88.7	0.76	0.1452	135
YE2-180M2	22	2950	400	38.6	750	220	250	91.3	0.9	0.1025	180
YE2-180M4	18.5	1470	400	34.4	750	210	280	91.2	0.85	0.1350	179
YE2-180L4	22	1470	400	40.8	750	210	280	91.6	0.85	0.1360	195
YE2-180L6	15	975	400	30.6	700	210	230	89.7	0.79	0.2285	185
YE2-200L2	30	2950	400	52.9	750	200	220	92	0.89	0.1730	232
YE2-200LX2	37	2950	400	65.6	750	200	230	92.5	0.88	0.1950	246
YE2-200L4	30	1465	400	54.6	710	180	280	92.3	0.86	0.2450	248
YE2-200L6	18.5	980	400	37.4	700	210	240	90.4	0.79	0.3420	252
YE2-200LX6	22	980	400	43.1	700	210	240	90.9	0.81	0.3860	310
YE2-225M2	45	2960	400	77.7	750	200	230	92.9	0.9	0.3250	315
YE2-225S4	37	1470	400	68.6	660	180	280	92.7	0.84	0.3900	304
YE2-225M4	45	1475	400	83.1	660	180	280	93.1	0.84	0.4500	337
YE2-225M6	30	980	400	57.6	700	200	230	91.7	0.82	0.6250	303
YE2-250M2	55	2970	400	96.8	750	200	230	93.2	0.88	0.3950	390
YE2-250M4	55	1475	400	99.9	660	210	280	93.5	0.85	0.6400	395
YE2-250M6	37	980	400	69.0	700	210	250	92.2	0.84	0.9850	405
YE2-280S2	75	2970	400	132.7	750	200	230	93.8	0.87	0.6830	540
YE2-280M2	90	2975	400	158.7	750	200	230	94.1	0.87	0.7650	570
YE2-280S4	75	1480	400	130.9	760	210	280	94	0.88	1.0450	600
YE2-280M4	90	1485	400	155.0	710	210	280	94.2	0.89	1.3960	660
YE2-280S6	45	985	400	84.4	700	210	250	92.7	0.83	1.7320	465
YE2-280M6	55	985	400	102.7	700	210	250	93.1	0.83	1.9650	540
YE2-315S2	110	2975	400	187.1	710	180	230	94.3	0.9	1.5580	960
YE2-315M2	132	2975	400	223.8	710	180	220	94.6	0.9	1.7260	1010
YE2-315L2	160	2980	400	273.7	710	180	220	94.8	0.89	1.9410	1120
YE2-315LX2	200	2985	400	337.6	710	180	220	95	0.9	2.2120	1200
YE2-315S4	110	1485	400	195.4	710	210	220	94.5	0.86	3.4800	960
YE2-315M4	132	1485	400	228.6	690	210	220	94.7	0.88	3.6780	1040
YE2-315L4	160	1485	400	279.7	690	210	220	94.9	0.87	4.4720	1140
YE2-315LX4	200	1485	400	348.9	690	210	220	95.1	0.87	4.8560	1250
YE2-315S6	75	985	400	135.9	700	200	220	93.7	0.85	3.7230	900
YE2-315M6	90	985	400	160.7	700	200	220	94	0.86	4.5260	980
YE2-315L6	110	985	400	195.8	670	200	220	94.3	0.86	5.1570	1160
YE2-315LX6	132	985	400	236.9	670	200	220	94.6	0.85	5.6850	1210
YE2-355M2	250	2985	400	426.8	710	160	220	95	0.89	3.8490	1760
YE2-355L2	280	2990	400	472.7	710	160	220	95	0.9	3.9490	1870
YE2-355LX2	315	2990	400	531.8	710	160	220	95	0.9	3.9950	1920
YE2-355LY2	355	2990	400	592.7	750	140	200	95	0.91	4.1250	1975
YE2-355M4	250	1485	400	426.3	690	210	220	95.1	0.89	7.3640	1740
YE2-355L4	280	1490	400	477.5	710	210	220	95.1	0.89	8.0140	1830
YE2-355LX4	315	1490	400	531.2	690	210	220	95.1	0.9	9.1000	1975
YE2-355LY4	355	1490	400	598.7	690	210	220	95.1	0.9	9.6000	2148
YE2-355M6	160	990	400	283.3	670	190	200	94.8	0.86	9.5700	1770
YE2-355L6	200	990	400	353.3	670	190	200	95	0.86	9.8900	1870
YE2-355LX6	250	990	400	436.6	670	190	200	95	0.87	11.1000	1900
YE2-355LY6	280	990	400	483.4	670	190	200	95	0.88	11.3000	1980

YE2-IE2 SERIES

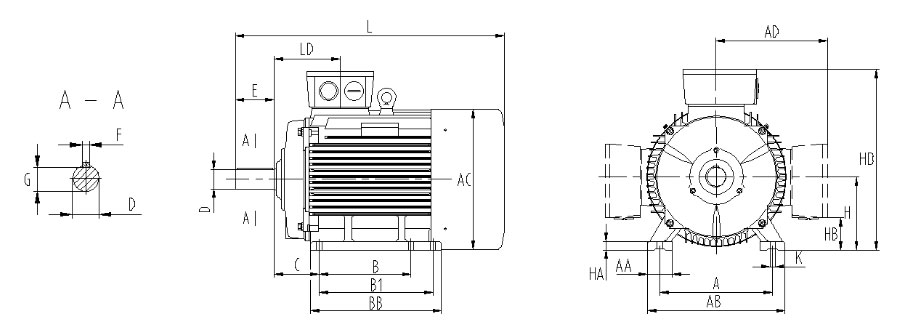

B3：Dimension Drawings

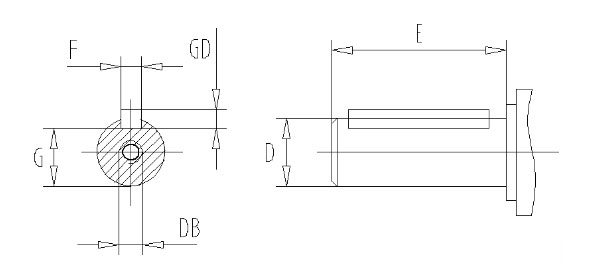

The shaft dimension will be showed in anther table

Frame	Pole	Mounting dimension						Overall dimension
		A	B	B1	C	H	K	AA	AB	AC	AD	BB	HA	HB	HD		L	LD
		A	B	B1	C	H	K	AA	AB	AC	AD	BB	HA	HB	上出線	左右出線	L	LD
80	2-8	125	100	-	50	80°-0.5	10	35	160	160	145	130	12	36	225	160	280	75
90S	2-8	140	100	-	56	90°-0.5	10	36	180	180	155	140	12	50	245	180	335	75
90L	2-8	140	125	-	56	90°-0.5	10	36	180	180	155	165	12	50	245	180	360	75
100L	2-8	160	140	-	63	100°-0.5	12	40	200	200	180	175	14	55	280	200	395	83
112M	2-8	190	140	-	70	112°-0.5	12	45	230	220	190	180	15	60	305	222	420	87
132S	2-8	216	140	-	89	132°-0.5	12	55	265	260	220	190	18	65	355	262	465	102
132M	2-8	216	178	-	89	132°-0.5	12	55	265	260	220	230	18	65	355	262	505	102
160M	2-8	254	210	-	108	160°-0.5	15	65	315	315	265	260	20	81	425	385	608	146
160L	2-8	254	254	-	108	160°-0.5	15	65	315	315	265	305	20	81	425	385	652	146
180M	2.4	279	241	-	121	180°-0.5	15	70	350	360	280	315	22	105	460	420	690	161
180L	4-8	279	279	-	121	180°-0.5	15	70	350	360	280	350	22	105	460	420	730	161
200L	2-8	318	305	-	133	200°-0.5	19	70	390	400	310	370	25	85	510	475	760	186
225S	4-8	356	286	-	149	225°-0.5	19	75	435	450	335	370	28	110	555	535	810	189
225M	2	356	311	-	149	225°-0.5	19	75	435	450	335	395	28	110	555	535	805	189
225M	4-8	356	311	-	149	225°-0.5	19	75	435	450	335	395	28	110	555	535	835	189
250M	2	406	349	-	168	250°-0.5	24	80	485	485	375	445	30	110	625	570	910	207
250M	4-8	406	349	-	168	250°-0.5	24	80	485	485	375	445	30	120	625	570	910	207
280S	2	457	368	-	190	280°-1.0	24	85	545	550	405	490	35	142	685	660	985	215
280S	4-8	457	368	-	190	280°-1.0	24	85	545	550	405	490	35	142	685	660	1005	215
280M	2	457	419	-	190	280°-1.0	24	85	545	550	405	540	35	142	685	660	1030	215
280M	4-8	457	419	-	190	280°-1.0	24	85	545	550	405	540	35	142	685	660	1060	215
315S	2	508	406	-	216	315°-1.0	28	120	630	625	530	570	45	110	845	750	1180	257
315S	4-8	508	406	-	216	315°-1.0	28	120	630	625	530	570	45	110	845	750	1210	257
315M	2	508	457	508	216	315°-1.0	28	120	630	625	530	680	45	110	845	750	1290	257
315L	4-8	508	457	508	216	315°-1.0	28	120	630	625	530	680	45	110	845	750	1320	257
355	2	610	560	630	254	355°-1.0	28	120	730	700	615	750	52	110	970	810	1526	284
355	4-8	610	560	630	254	355°-1.0	28	120	730	700	615	750	52	110	970	810	1556	284

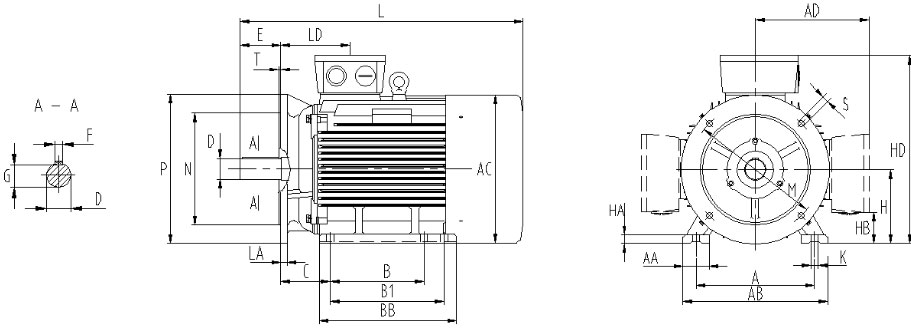

B35：Dimension Drawings
The shaft dimension will be showed in anther table

Frame	Pole	Mounting dimension												Overall dimension
		A	B	B1	C	H	K	M	N	P	R	S	T	AA	AB	AC	AD	BB	HA	HB	HD		L	LA	LD
		A	B	B1	C	H	K	M	N	P	R	S	T	AA	AB	AC	AD	BB	HA	HB	上出線	左右出線	L	LA	LD
80	2-8	125	100	-	50	80°-0.5	10	165	130	200	0	4-Φ12	4	35	160	160	145	130	12	36	225	160	280	12	75
90S	2-8	140	100	-	56	90°-0.5	10	165	130	200	0	4-Φ12	4	36	180	180	155	140	12	50	245	180	335	12	75
90L	2-8	140	125	-	56	90°-0.5	10	165	130	200	0	4-Φ12	4	36	180	180	155	165	12	50	245	180	360	12	75
100L	2-8	160	140	-	63	100°-0.5	12	215	180	250	0	4-Φ15	4	40	200	200	180	175	14	55	280	200	395	13	83
112M	2-8	190	140	-	70	112°-0.5	12	215	180	250	0	4-Φ15	4	45	230	220	190	180	15	60	305	222	420	14	87
132S	2-8	216	140	-	89	132°-0.5	12	265	230	300	0	4-Φ15	4	55	265	260	220	190	18	65	355	262	465	14	102
132M	2-8	216	178	-	89	132°-0.5	12	265	230	300	0	4-Φ15	4	55	265	260	220	230	18	65	355	262	505	14	102
160M	2-8	254	210	-	108	160°-0.5	15	300	250	350	0	4-Φ19	5	65	315	315	265	260	20	81	425	385	608	15	146
160L	2-8	254	254	-	108	160°-0.5	15	300	250	350	0	4-Φ19	5	65	315	315	265	305	20	81	425	385	652	15	146
180M	2.4	279	241	-	121	180°-0.5	15	300	250	350	0	4-Φ19	5	70	350	360	280	315	22	105	460	420	690	15	161
180L	4-8	279	279	-	121	180°-0.5	15	300	250	350	0	4-Φ19	5	70	350	360	280	350	22	105	460	420	730	15	161
200L	2-8	318	305	-	133	200°-0.5	19	350	300	400	0	4-Φ19	5	70	390	400	310	370	25	85	510	475	760	17	186
225S	4-8	356	286	-	149	225°-0.5	19	400	350	450	0	8-Φ19	5	75	435	450	335	370	28	110	555	535	810	20	189
225M	2	356	311	-	149	225°-0.5	19	400	350	450	0	8-Φ19	5	75	435	450	335	395	28	110	555	535	805	20	189
225M	4-8	356	311	-	149	225°-0.5	19	400	350	450	0	8-Φ19	5	75	435	450	335	395	28	110	555	535	835	20	189
250M	2	406	349	-	168	250°-0.5	24	500	450	550	0	8-Φ19	5	80	485	485	375	445	30	110	625	570	910	22	207
250M	4-8	406	349	-	168	250°-0.5	24	500	450	550	0	8-Φ19	5	80	485	485	375	445	30	120	625	570	910	22	207
280S	2	457	368	-	190	280°-0.1	24	500	450	550	0	8-Φ19	5	85	545	550	405	490	35	142	685	660	985	22	215
280S	4-8	457	368	-	190	280°-0.1	24	500	450	550	0	8-Φ19	5	85	545	550	405	490	35	142	685	660	1005	22	215
280M	2	457	419	-	190	280°-0.1	24	500	450	550	0	8-Φ19	5	85	545	550	405	540	35	142	685	660	1030	22	215
280M	4-8	457	419	-	190	280°-0.1	24	500	450	550	0	8-Φ19	5	85	545	550	405	540	35	142	685	660	1060	22	215
315S	2	508	406	-	216	315°-0.1	28	600	550	660	0	8-Φ24	6	120	630	625	530	570	45	110	845	750	1180	22	257
315S	4-8	508	406	-	216	315°-0.1	28	600	550	660	0	8-Φ24	6	120	630	625	530	570	45	110	845	750	1210	22	257
315M	2	508	457	508	216	315°-0.1	28	600	550	660	0	8-Φ24	6	120	630	625	530	680	45	110	845	750	1290	22	257
315L	4-8	508	457	508	216	315°-0.1	28	600	550	660	0	8-Φ24	6	120	630	625	530	680	45	110	845	750	1320	22	257
355	2	610	560	630	254	355°-0.1	28	740	680	800	0	8-Φ24	6	120	730	700	615	750	52	125	970	830	1526	25	284
355	4-8	610	560	630	254	355°-0.1	28	740	680	800	0	8-Φ24	6	120	730	700	615	750	52	125	970	830	1556	25	284

Shaft Dimension Drawings

Frame	Pole	D	E	F	G	GD	DB
80	2、4、6、8	19j6(+0.009 -0.004)	40	6	15.5	6	M6
90S	2、4、6、8	24j6(+0.009 -0.004)	50	8	20	7	M8
90L	2、4、6、8	24j6(+0.009 -0.004)	50		20		M8
100L	2、4、6、8	28j6(+0.009 -0.004)	60		24		M10
112M	2、4、6、8	28j6(+0.009 -0.004)	60		24		M10
132S	2、4、6、8	38k6(+0.018 -0.002)	80	10	33	8	M12
132M	2、4、6、8	38k6(+0.018 -0.002)	80	10	33		M12
160M	2、4、6、8	42k6(+0.018 -0.002)	110	12	37		M16
160L	2、4、6、8	42k6(+0.018 -0.002)		12	37
180M	2.4	48k6(+0.018 -0.002)		14	42.5	9
180L	4、6、8	48k6(+0.018 -0.002)		14	42.5	9
200L	2	55m6(+0.03 -0.011)		16	49	10	M20
200L	4、6、8	55m6(+0.03 -0.011)		16	49	10
225S	4、6、8	60m6(+0.03 -0.011)	140	18	53	11
225M	2	55m6(+0.03 -0.011)	110	16	49	10
225M	4、6、8	60m6(+0.03 -0.011)	140	18	53	11
250M	2	60m6(+0.03 -0.011)			53	11
250M	4、6、8	65m6(+0.03 -0.011)			58	11
280S	2	65m6(+0.03 -0.011)			58	11
280S	4、6、8	75m6(+0.03 -0.011)		20	67.5	12
280M	2	65m6(+0.03 -0.011)		18	58	11
280M	4、6、8	75m6(+0.03 -0.011)		20	67.5	12
315S	2	65m6(+0.03 -0.011)	140	18	58	11
315S	4、6、8	80m6(+0.03 -0.011)	170	22	71	14
315M 315L	2	65m6(+0.03 -0.011)	140	18	58	11
315M 315L	4、6、8	80m6(+0.03 -0.011)	170	22	71	14
355	2	75m6(+0.03 -0.011)	140	20	67.5	12
355	4、6、8	95m6(+0.035 -0.013)	170	25	86	14

上一篇：YE3系列高效三相異步電動機

下一篇：Y2A系列鋁殼三相異步電動機

Related Products

相關產品

YE2系列高效三相異步電動機
